Product details:

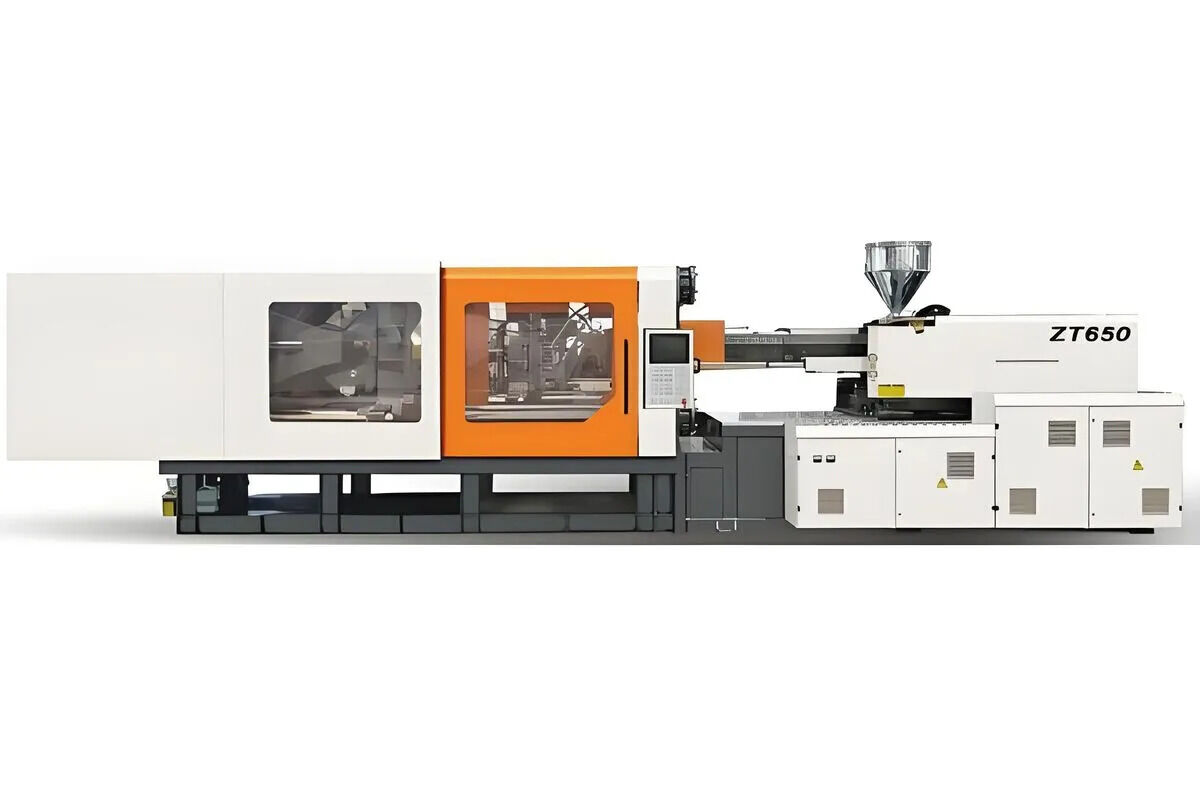

MODEL	ZT400/IU3000(10L)	ZT650/IU5600
INJECTION UNIT	B(10L)	B(20L)
Shot Volume cm³	1767	3308
Injection Weight g	1626	3043
Screw Diameter mm	75	90
Screw L/D Ratio Sc	21:1	21:1
Injection Rate cm³/s	450	825
Injection Pressure Mpa	171	169
Plasticziation Capacity g/s	100	175
Max Screw Speed(electric storage) rpm	200(260)	200(210)
Injection Speed mms	102	130
Injection Stroke mm	400	520
CLAMPING UNIT
Clamping Force Kn	4000	6500
Clamping Stroke mm	730	950
Inner Spacing of Tie Rod(WxH) mm	730×730	940×920
Max,Daylight mm	1530	1900
Mold Height mm	280-800	350-950
Ejector Stroke mm	200	260
Ejeclor Force Kn	152	182
CONTROL UNIT
System Pressure Mpa	17.5	17.5
Pump Molor Power Kw	55	65+31
Power of oil pump motor+storage motor (optional) Kw	55+47（Integrated direct drive）	65+31+55（Motor + Gearbox）
Healer Power Kw	30	45
No.of Healer Control zone zone	5	6
OTHERS
Oil Tank Capacity L	600	800
Total weight t	14.5	26
Machine Dimension(LxWxH) m	7.1×1.8×2.2	9.2×2.1×2.4
Front Dimensions of Movable Formwork

Product performance:

1. High plasticizing ability and high color mixing ability screw structure design, suitable for frequent color change of products and fast production cycle requirements.

2. Increase the mold opening stroke design to meet the large stroke space requirements of the in-mold labeling die manipulator.

3. Standard numerical control back pressure valve and oil temperature detection display, which is convenient for product process adjustment.

4. ZT650 and ZT780 come standard with dual pump and mold opening synchronization ejection function, and can also be equipped with electric storage configuration and open storage synchronization function, which greatly shortens the molding cycle.

Product features:

Efficient production:

• With high firing rate, it can quickly complete injection molding, improve production efficiency, and meet the needs of large-scale production of barrels.
• Large clamping force ensures that the mold is tightly closed, resulting in stable production of high-quality barrels.

Precision molding:

• The high-precision control system precisely controls the injection molding parameters, resulting in high dimensional accuracy and regular appearance of the barrel.
• Optimize the screw design to better plasticize the raw materials and improve the quality performance of the barrel.

Adapt to a variety of materials:

• It can process a variety of plastic raw materials, providing more options for barrels for different purposes.
• Good material compatibility to meet the needs of additives or modified materials.

Stable and reliable:

• Solid fuselage structure, withstands high pressure and heavy load, with good stability.
• High-quality components ensure long-term stable operation and reduce the probability of failure.

Convenient operation:

•  Humanized operation interface, easy to master the operation method, improve work efficiency.
• High degree of automation, reduce manual operation and reduce labor intensity.

Energy conservation and environmental protection:

• Efficient energy utilization and reduced energy consumption.
• Reduce waste generation and meet environmental requirements.

Detail display:

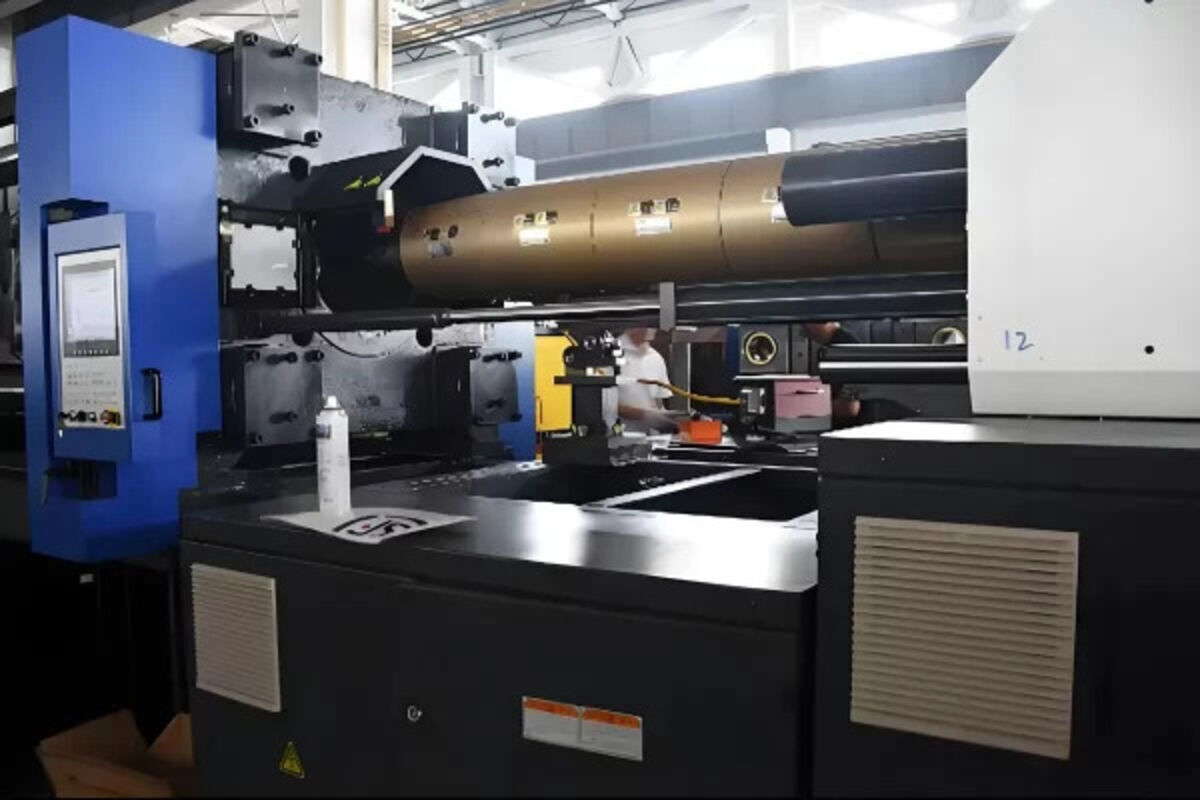

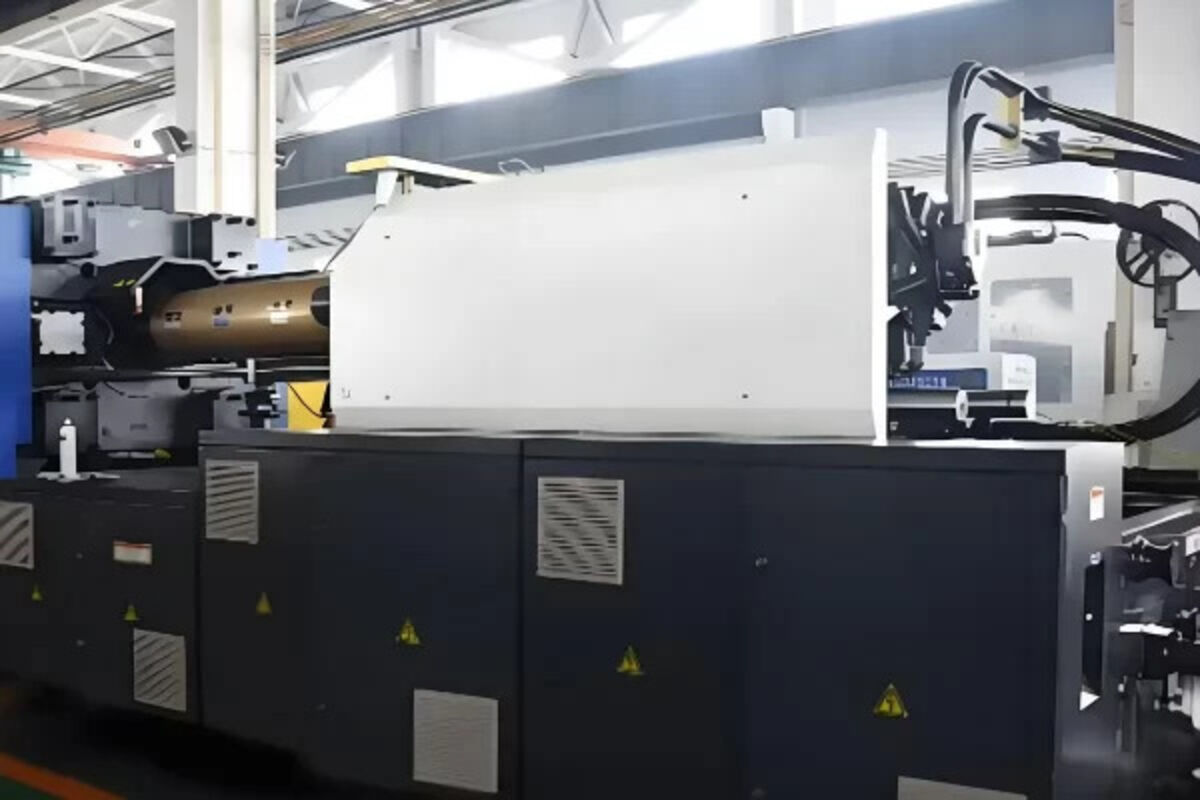

1. Injection molding part:

The injection molding part of the special injection molding machine for barrel making is unique. The screw is carefully designed and has strong plasticizing ability to ensure uniform melting of the plastic. The multi-stage precise temperature control of the barrel ensures the best state of the plastic. The injection cylinder has large thrust and high-speed and high-pressure injection. The measurement is accurate and the plasticizing system is stable. The advanced control system monitors and adjusts the parameters in real time. This part operates efficiently, providing high-quality injection molding for barrel making, improving product quality and production efficiency, and meeting the specific needs of barrel making production.

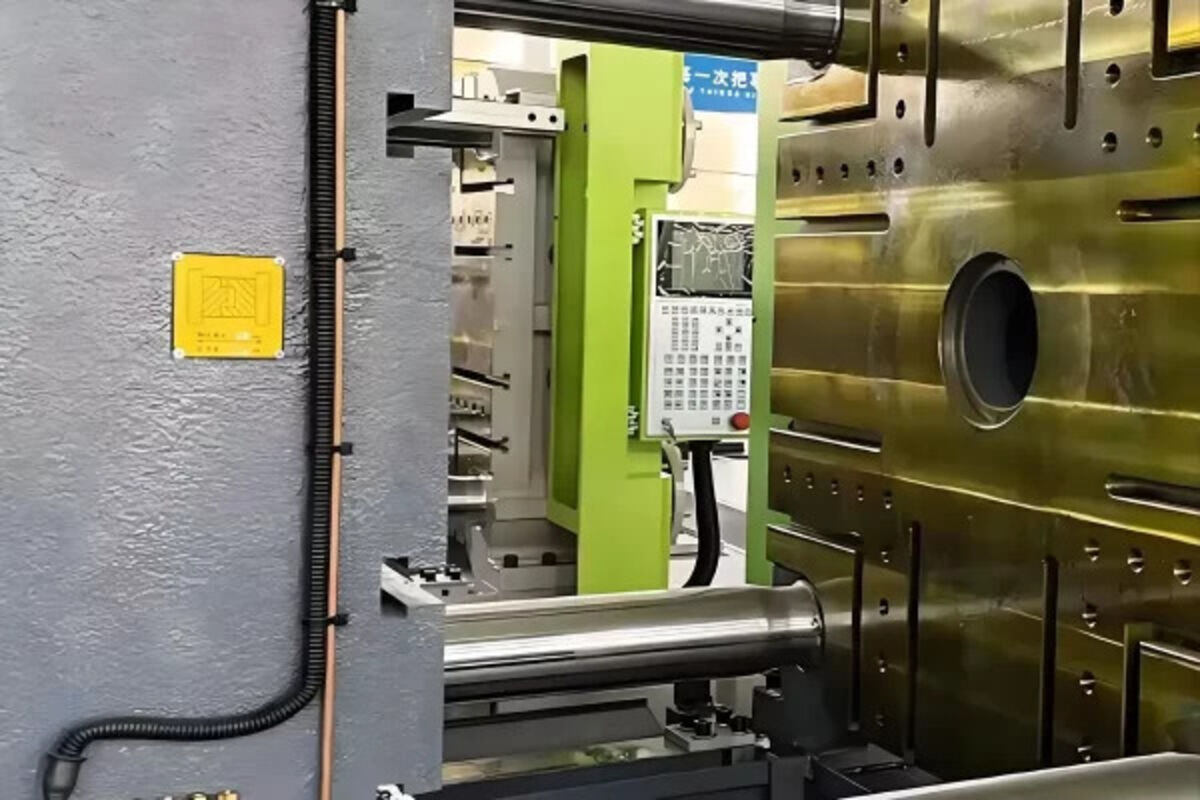

2. Clamping part

The clamping part of the special injection molding machine for barrel making has distinct characteristics. A strong clamping mechanism is adopted to provide a stable and large clamping force, ensuring that the mold is tightly closed and preventing the barrel body from flying edge. The template is made of high-strength steel with high precision and can withstand huge pressure. The tie rod is strong and has good straightness to ensure the smooth opening and closing of the mold. The mold adjusting device is accurate and reliable, and adapts to different sizes of molds. The overall clamping part is efficient and stable, providing a solid guarantee for the production of barrels and improving the quality and production efficiency of barrels.

3. Electronic control section

The electronic control part of the special injection molding machine for barrel making has remarkable characteristics. Advanced programmable controller is adopted to precisely control the action of each link. Real-time monitoring of injection molding parameters to ensure stable production. With fault diagnosis function, quickly locate problems. Friendly operation interface, convenient parameter setting and adjustment. Can adapt to the needs of barrel making process, accurately regulate temperature, pressure, etc., to ensure the efficient operation of the injection molding machine, and improve the quality and production efficiency of barrel making.

Purpose:

Production of all kinds of plastic buckets:

Meeting the needs of different industries:

1.Pharmaceutical industry: The production of pharmaceutical packaging barrels has extremely high hygiene requirements. The injection molding machine can ensure the cleanliness and product quality of the production process.

2.Agricultural field: It is used to make containers such as pesticide barrels, which need to have certain chemical resistance and strength.

3. Daily chemical industry: It can manufacture laundry detergent barrels, detergent barrels, etc., with high appearance requirements. The injection molding machine can achieve fine surface treatment.

Improve production efficiency and product quality:

1.Efficient production: ZT barrel-making special injection molding machine usually has a high injection molding speed and degree of automation, which can quickly produce a large number of plastic barrels to meet market demand.

2. Stable product quality: Through precise temperature, pressure and injection molding time control, ensure that the dimensional accuracy and physical properties of each plastic barrel are consistent.

3. Reduce costs: Automated production reduces manual operation and reduces labor costs. At the same time, efficient production process also helps to reduce energy consumption and waste of raw materials.
